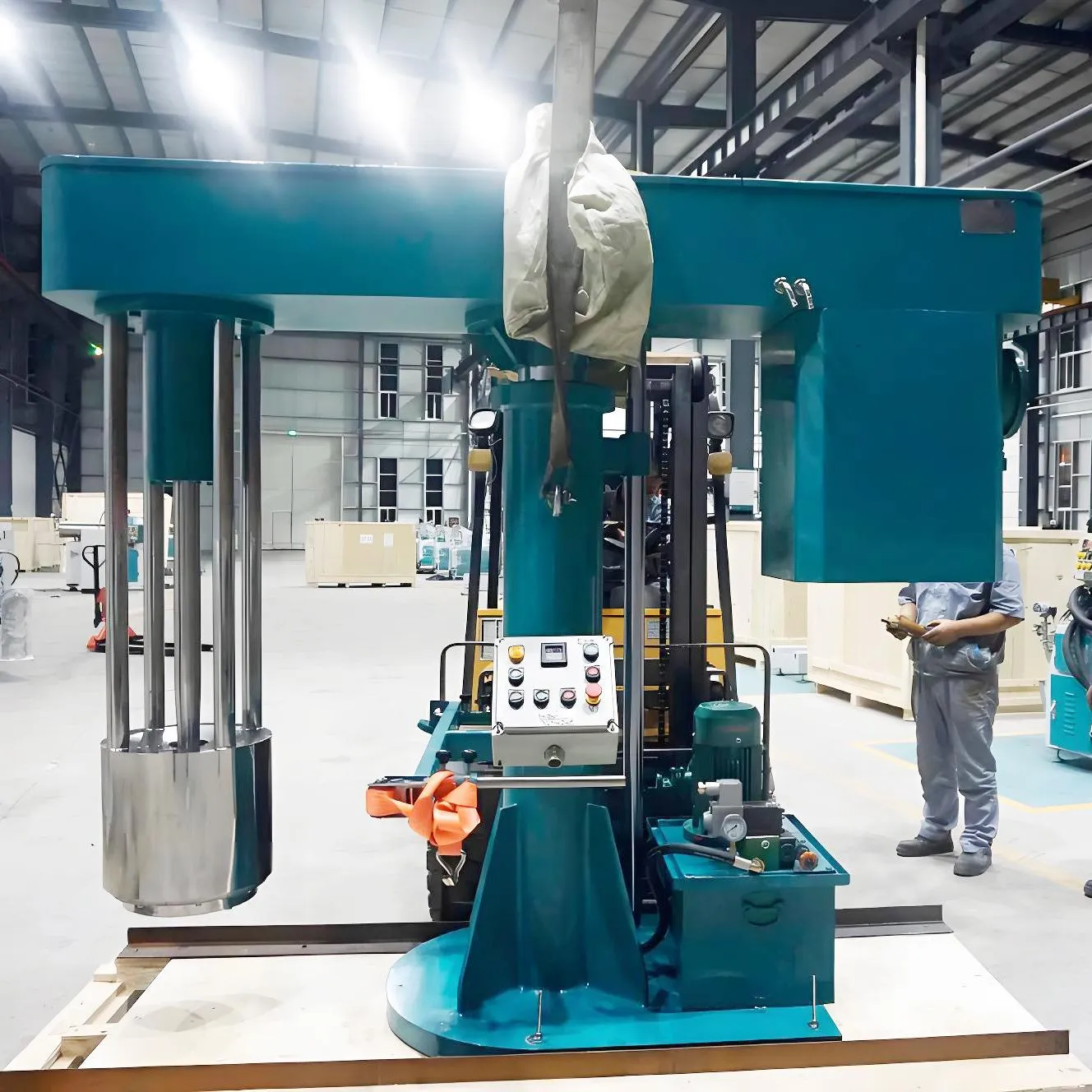

RTLL Industrial-Grade Basket Mill

This equipment integrates dispersion and grinding. Through self-priming impellers and high-speed dispersing discs, it achieves fine grinding and multi-effect mixing, suitable for industries such as coatings and pesticides.

400-855-0306

info@root-asia.com

8613611698308

RTLL Industrial-Grade Basket Mill

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Introduction

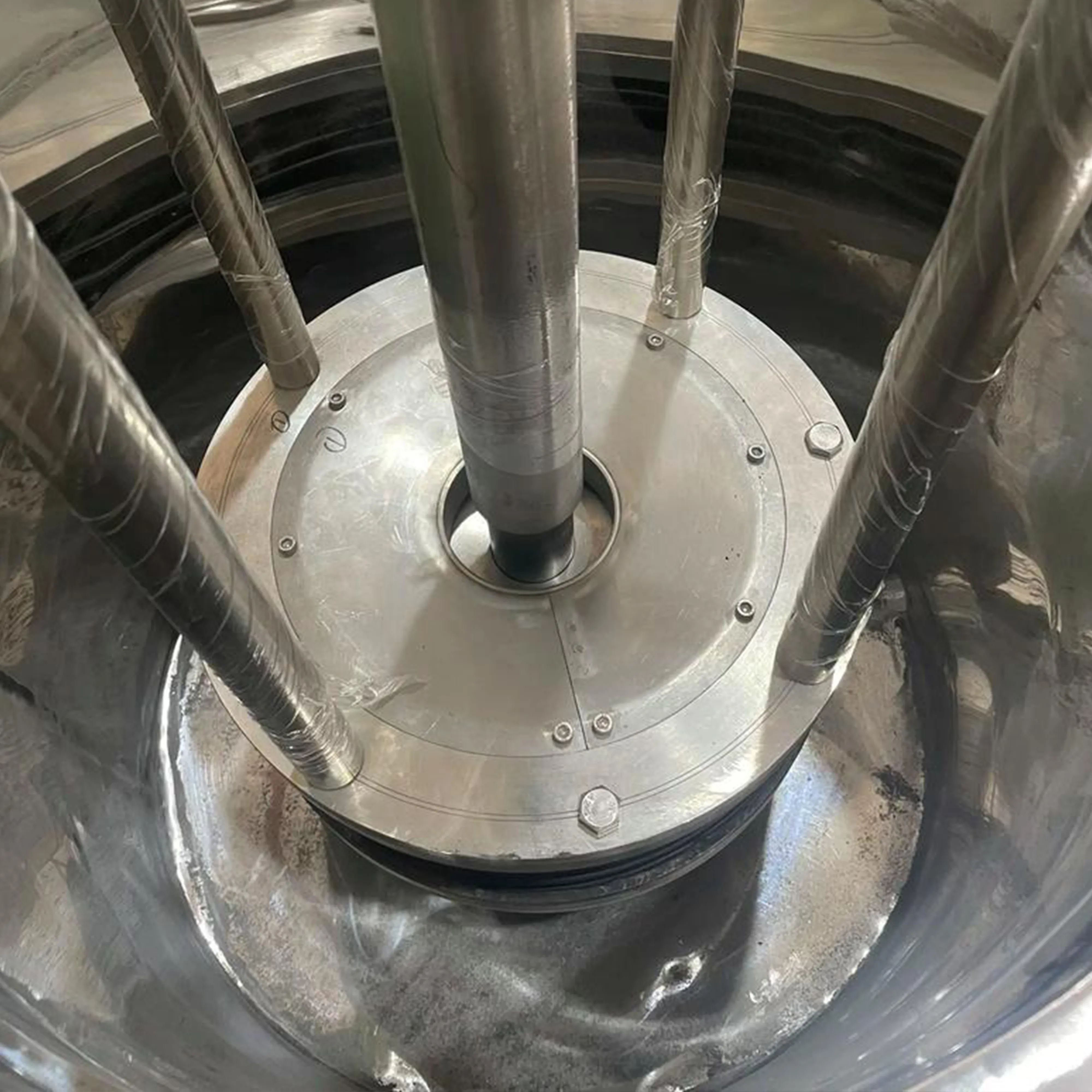

It integrates dispersion and grinding functions. It adopts a self-priming impeller for material suction, enabling ultra-fine grinding in the basket grinding chamber. Driven by the high-speed dispersion disc, it generates dispersion, mixing and circulation effects. It delivers excellent grinding results for industries with high fineness requirements such as coatings, pesticides and inks. Meanwhile, it is very easy to clean, with minimal residue, making it economical and practical.

Performance Features

1.Industrial-Grade Production

Suitable for pilot-scale and industrial production.

2.Convenient and Durable

Adopts hydraulic lifting, ensuring stability and convenience. Features a robust structure for long-term durability.

3.Integrated Dispersion and Grinding

Dispersion and ultra-fine grinding are completed in one pass with a single machine and container.

4.Efficient Grinding

Requires a small amount of grinding media, offering high efficiency, excellent fineness, high yield, low residue, and easy cleaning/changeover.

5.Precision Speed Regulation

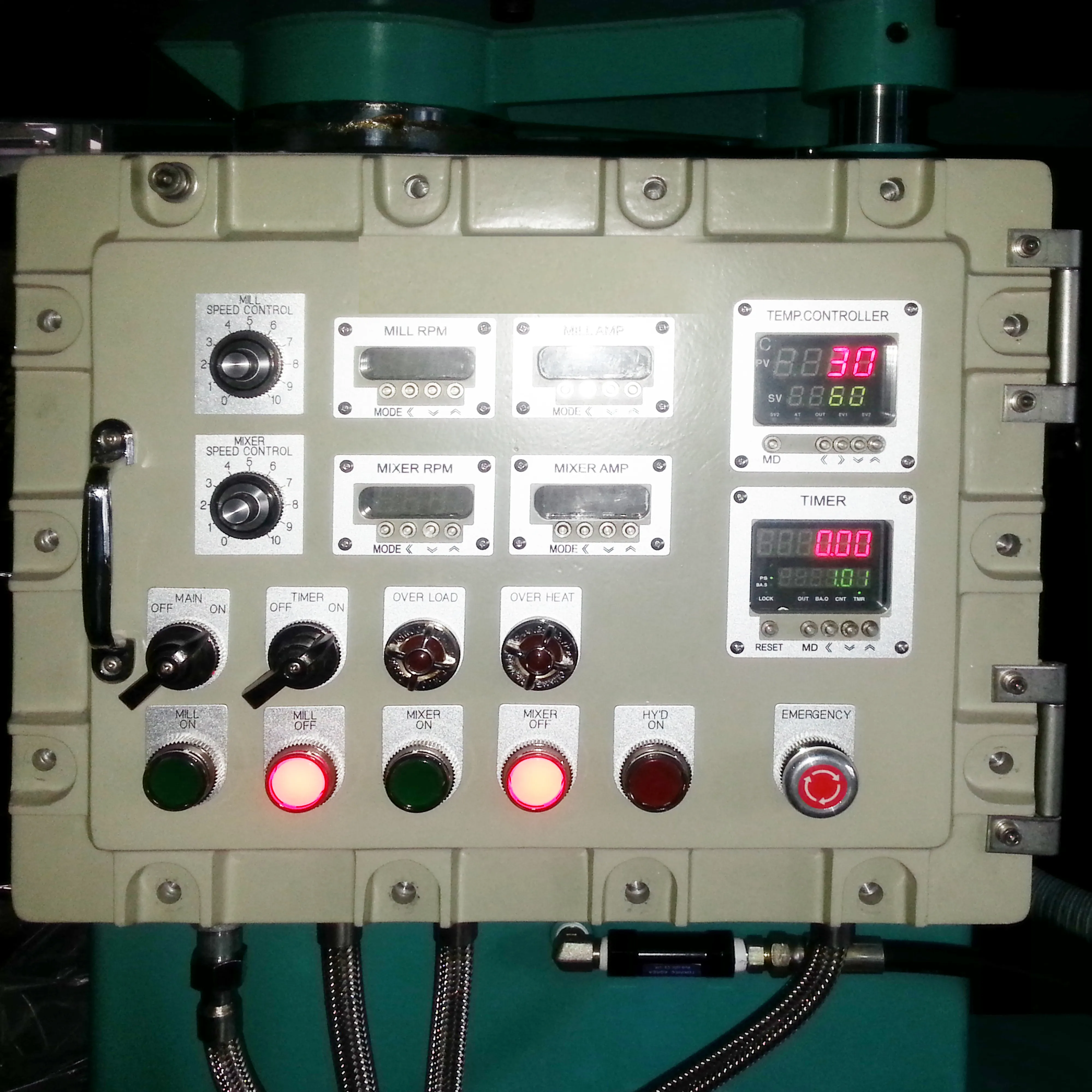

Equipped with an imported frequency converter for stepless speed adjustment.

6.Customizable Design

Supports non-standard customization based on special user needs, such as explosion-proof and sealed configurations. Optional clamping methods include belt-driven, hand-cranked, and pneumatic types.

7.Easy Maintenance

Modular component design enables convenient disassembly, maintenance, and inspection.

Application Fields

biology

pharmaceuticals

cosmetics

food

paints

inks

It is suitable for dispersing and grinding materials in industries such as biology, pharmaceuticals, cosmetics, food, paints, inks, color pastes, dyes, and fertilizers.

Technical Parameters

(Additional equipment available, with a maximum capacity of 3000L. Basket volume and zirconium bead dosage shall be included in the parameters.)

Model	Power (Kw)	Rotational Speed (rpm)	Processing Capacity (L)	Basket Capacity (L)	Lifting Height (mm)	Grinding Media （mm)	Hydraulic Station Power（KW）
RTLL-5.5	5.5	0-1500	0-100	3	800	1.2-3	0.75
RTLL-7.5	7.5	0-1500	0-150	3.8	800	1.2-3	0.75
RTLL-11	11	0-1500	0-200	4.5	800	1.2-3	0.75
RTLL-15	15	0-1500	0-300	7	800	1.2-3	0.75
RTLL-22	22	0-1500	0-700	18	1100	1.2-3	1.1
RTLL-30	30	0-1500	0-1000	25	1100	1.2-3	1.1
RTLL-37	37	0-1500	0-1200	32	1100	1.2-3	1.5
RTLL-45	45	0-1500	0-1500	40	1200	1.2-3	1.5

Can be customized according to customer requirements.
