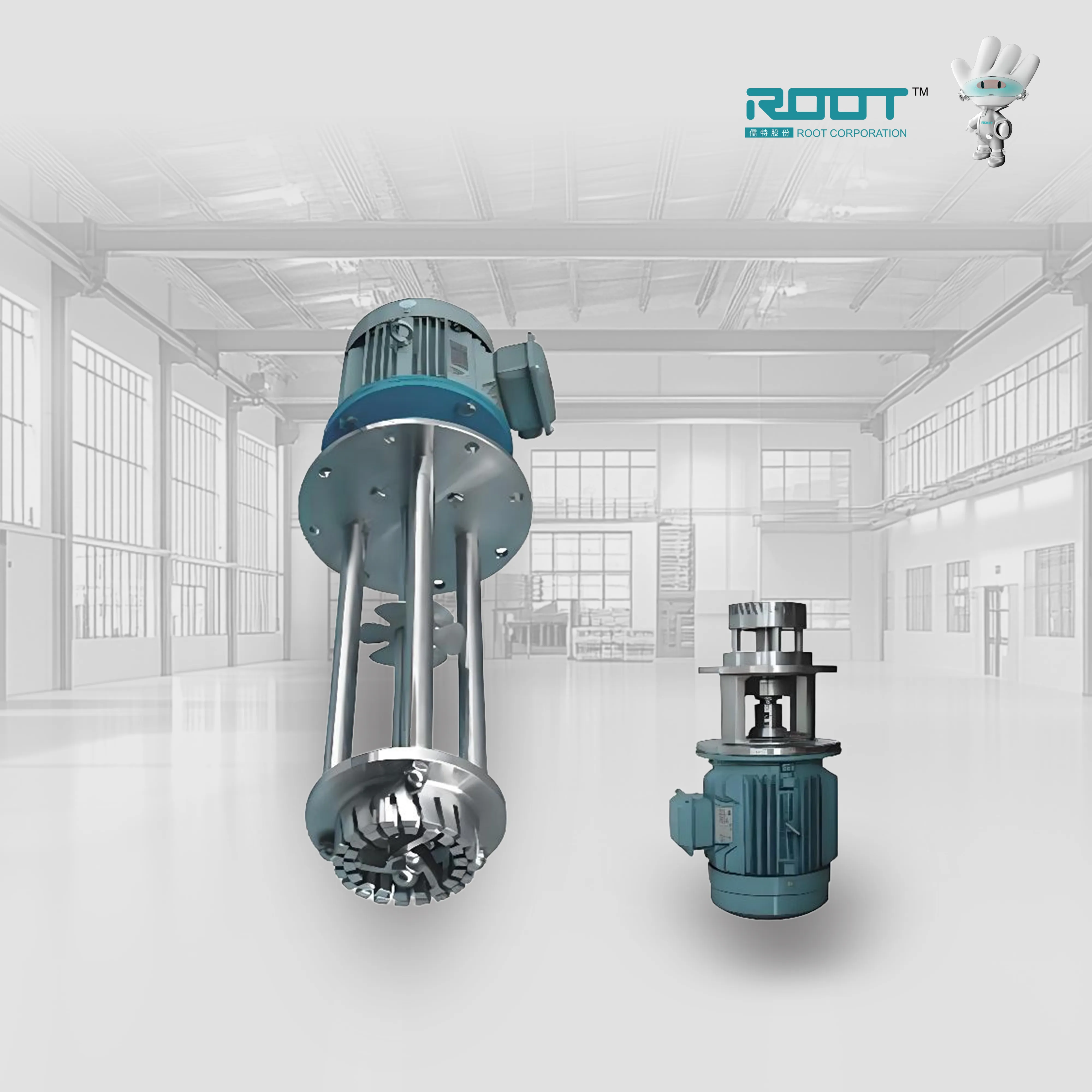

RTRH High-Shear Emulsifying Head

This is a core component of industrial mixing equipment. Through the cooperation of rotor and stator, it generates strong shearing force, featuring fast mixing, fine and uniform particle size, and stable emulsion. It can handle materials of various viscosities, with multiple models adapting to the 0-10000L processing needs of various industries.

400-855-0306

info@root-asia.com

8613611698308

RTRH High-Shear Emulsifying Head

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Introduction

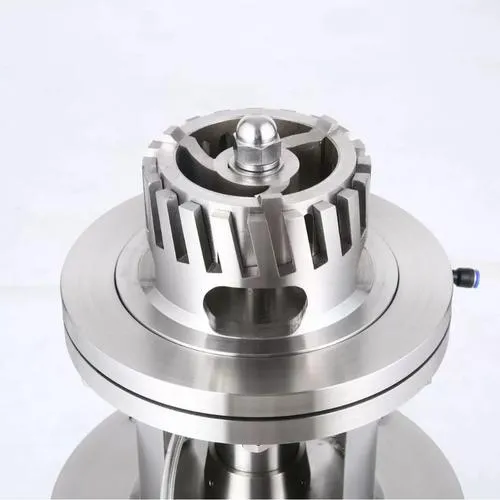

A high-shear emulsifying head is the core component of a high-efficiency industrial mixing device. Through the coordination of a high-speed rotating rotor and a precision stator, it generates extremely strong shear force, impact force, and turbulence. It can instantly uniformly refine, mix, and emulsify one or more immiscible liquids (such as oil and water), ultimately forming an extremely stable and fine emulsion or suspension.

Performance Features

1.High Mixing Efficiency and Excellent Finished Product Quality

It can quickly mix immiscible materials to shorten the production cycle. Meanwhile, relying on strong shearing force to break particles, it makes the finished product have smaller particle size, more uniform distribution, and delicate texture.

2.Strong Stability of Finished Products and Long Shelf Life

The formed emulsion or suspension has fine and uniform particles, which are less prone to delamination, precipitation, or oil-water separation, effectively extending the shelf life of products.

3.Wide Range of Material Adaptability

It can handle various materials from low viscosity to high viscosity, meeting the production needs of multiple industries such as chemical engineering, pharmaceuticals, cosmetics, and food, as well as different formulas.

Application Fields

chemical engineering

pharmaceuticals

cosmetics

food

It is suitable for industries such as chemical engineering, pharmaceuticals, cosmetics, and food.

Technical Parameters

Model	Power（KW）	Rotational Speed（rpm）	Throughput （L）	Standard Length （mm）
RTRH-0.75	0.75	0-2950	0-30	350
RTRH-1.5	1.5	0-2950	10-50	450
RTRH-2.2	2.2	0-2950	50-100	650
RTRH-4	4	0-2950	100-300	750
RTRH-7.5	7.5	0-2950	200-800	900
RTRH-11	11	0-2950	500-1450	1050
RTRH-18.5	18.5	0-2950	600-2000	1200
RTRH-22	22	0-2950/1450	800-2500	1200
RTRH-30	30	0-1450	1000-2950	1350
RTRH-37	37	0-1450	1500-5000	1500
RTRH-45	45	0-1450	2000-8000	1600
RTRH-55	55	0-1450	3000-10000	1650
