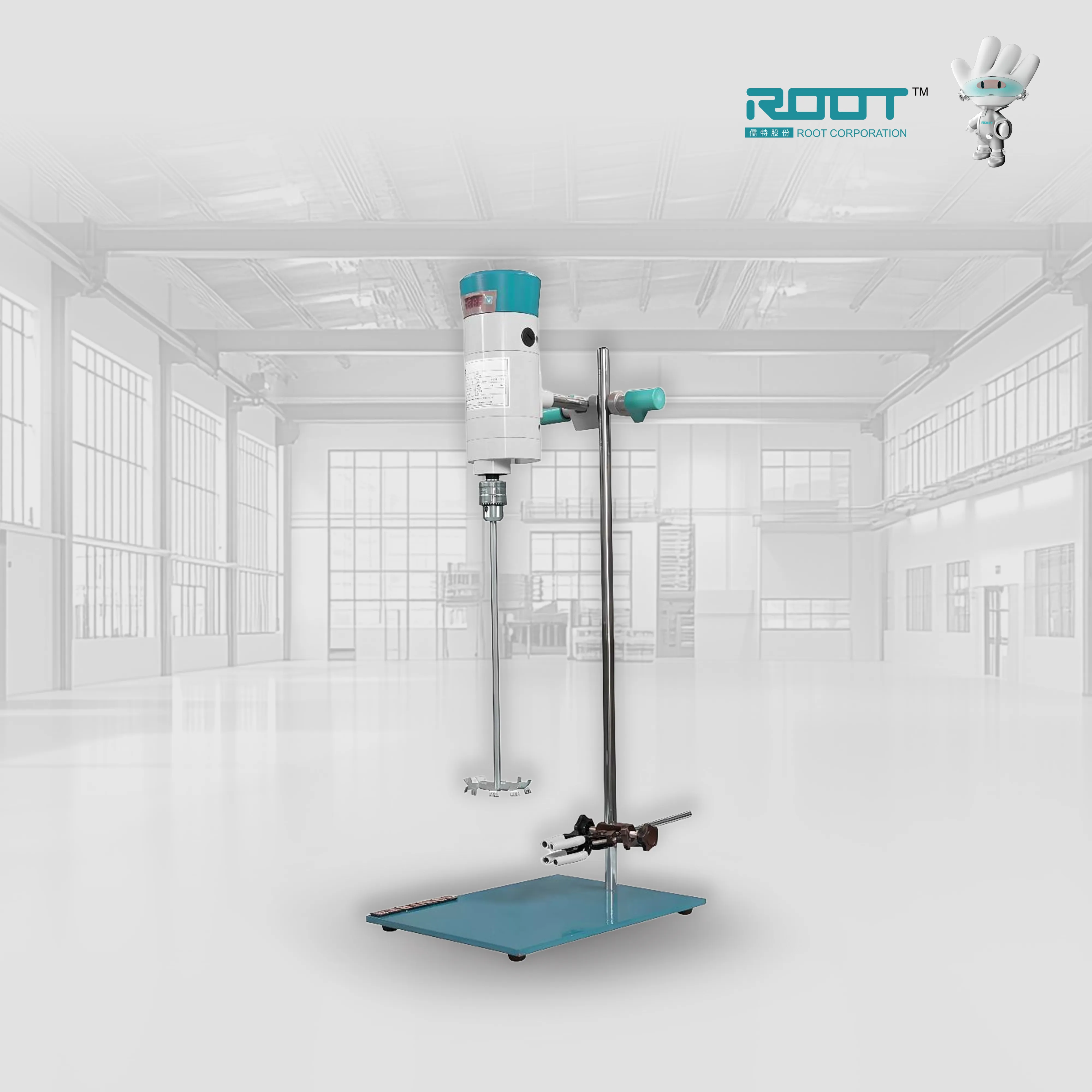

RTFS Laboratory High-Speed Disperser

It features a simple structure and easy operation, equipped with a permanent magnet DC motor that eliminates carbon brush wear. It supports stepless speed regulation with digital speed display, delivers excellent integrated dispersion and grinding performance, and offers multiple models for different processing volumes. It is suitable for scientific research and production simulation in multiple industries.

400-855-0306

info@root-asia.com

8613611698308

RTFS Laboratory High-Speed Disperser

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Introduction

It features a simple structure and easy operation. Adopting electronic constant-force speed regulation, it directly displays the rotational speed digitally and is equipped with multiple dispersion impellers, which can meet diverse experimental needs. Users can directly calculate the relationship between the impeller linear speed, material viscosity, and chemical reaction rate based on the displayed rotational speed, providing accurate data support for large-scale production.

Performance Features

1.Excellent Driving and Operational Performance

Adopting a permanent direct current motor, it features no carbon brush wear and no commutator spark interference. It also combines advantages such as small size, large torque, high efficiency, low energy consumption, and low noise, with fast and stable rotation speed.

2.Convenient and Precise Speed Regulation and Control

Supports stepless speed regulation, paired with PLD control technology. A 4-digit LED digital tube directly displays the rotation speed, facilitating data recording and calculation of relevant parameters to provide a basis for production.

3.Powerful Functionality and Adaptability

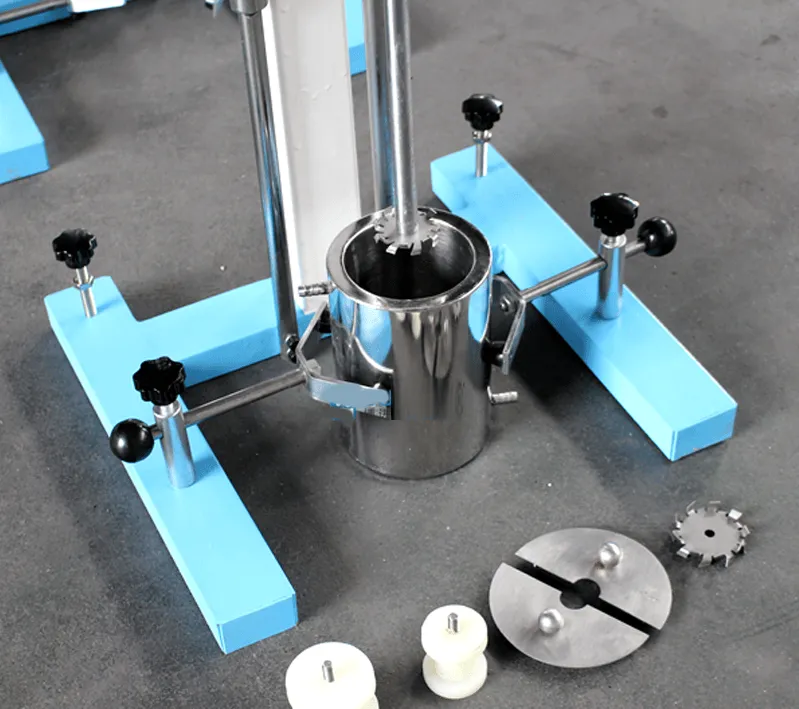

Integrating dispersion and grinding in one, it achieves excellent mixing and dispersion effects. Equipped with various dispersion impellers, it can meet different experimental needs and is suitable for processing multiple types of materials.

Application Fields

color pastes

inks

paints

ceramic slurries and glazes

It is mainly used in laboratories of industrial sectors and scientific research institutions involving pigments, dyes, color pastes, inks, paints, ceramic slurries and glazes, magnetic recording materials, etc. It is widely applied in scientific experiments, production simulation, and new product research and development.

Technical Parameters

Model	Power(kW)	Rotational Speed(rpm)	Disc Diameter（mm)	Lifting Stroke(mm)	Throughput(L)
RTYS-0.4	0.4	0-8000	50	250	5
RTYS-0.75	0.75	0-2950	60	250	10
RTYS-1.1	1.1	0-2950	80	420	20
RTYS-1.5	1.5	0-2950	100	420	30
RTYS-2.2	2.2	0-2950	120	500	50

RTFS Laboratory High-Speed Disperser
